15m mobile telescoping mast 350kg payloads for mobile telecom cell tower

Product Categories

Huaian Nengren Manufacture and Trade Co.,Ltd.

Contact Now

Name: 15m mobile telescoping mast 350kg payloads for mobile telecom cell tower
Brand: NRENTECH
Price: 15000 USD

Brand Name : NRENTECH

Model Number : NR-3300-15000-350L

Certification : ISO/CE

Place of Origin : CHINA

MOQ : 1

Price : USD 15000/unit FOB Shanghai

Payment Terms : T/T, Western Union

Supply Ability : 200 units/month

Delivery Time : 20 working days

Packaging Details : wooden box.

extended height : 15m

retracted height : 3.3m

payloads : 350kg

working air pressure : 0.2Mpa/29PSI

working temperature : -15~85℃

collar style : locking collar

number of sections : 7 sections

section dia. : 160mm~316mm

default accessories : 1x top flange, 1xbottom flange, 1x air hose pipe

optional accessories : side mounting brackets, guying lines, electric air compressor

unit weight : 350kg approx.

guarantee : 5 years

wind resistance : 100km/h with guying lines and 0.2 sq.m surface area

Contact Now

15m mobile telescoping mast 350kg payloads for mobile telecom cell tower

15m Lockable Pneumatic Telescopic Mast-350kg Payloads
1>	Item #:	NR-3300-15000-350L
2>	Extended Height:	15m
3>	Retracted Height:	3.3m
4>	Maximum Payloads:	350kg
5>	Type:	T-Lockable, Anti-rotation
6>	Inside Electric Wires	non
7>	Number of Sections:	7
8>	Sections’ diameter*Thickness:	1605mm, 1805mm, 2026mm, 2276mm, 2526mm, 2797mm, 316*8mm
9>	Materials:	Aluminum Alloy, Stainless steel fasteners
10>	Working Air Pressure:	0.2Mpa/29PSI recommend
11>	Working Temperature:	-25~55 Degrees Celsius
12>	Mast Weight:	345kg
13>	Wind Loads:	120km/h with guying wires
14>	Default accessories:	1x top flange
		1x bottom flange
		1x air hose pipe
		1x air controller
15>	Optional Accessories:	Ground Mounting Tripods
		Guying Rope Kits with Mounting Spikes

		AC220V/50Hz Electric Air Compressor
		Vehicle Side Mounting Bracket
		Remote Controller Kit

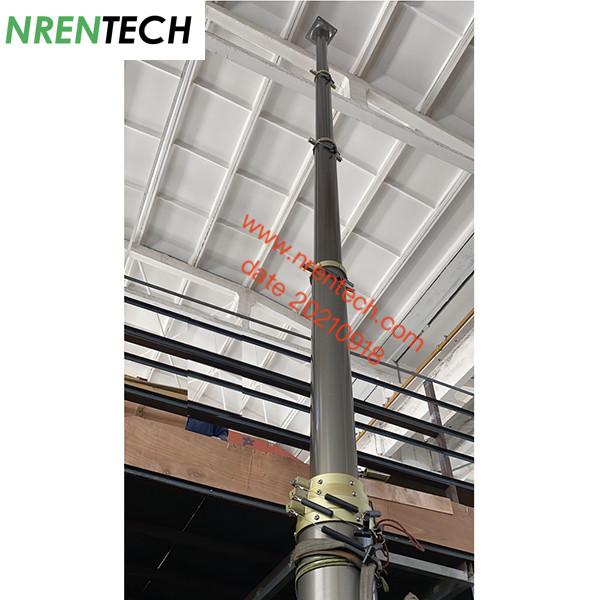

15m mobile telescoping mast 350kg payloads for mobile telecom cell tower Images
